Wheels & Accessories
The composition of the tyre and the various types of wheel rims or hubs as well as various wheel bearings give the wheel many different properties. Because of this wheels have differing load capacities, resistance to rolling and operational qualities.
WHCP 1603 6553/N=60
WHCP 1603 6553/N=60 160 mm - 280 mm, 285 kg - 500 kg
Technical data
| Diameter | 160 mm |
| Wheel width | 50 mm |
| Hub length | 60 mm |
| Wheel axle diameter | 25 mm |
| Load capacity | 285 kg |
| Weight | 2.6 kg |
Wheel
- Cast iron wheel with pressed-on full-elastic rubber tyre
- (Shore A 68) with two deep groove ball bearings
WHCP 3603 6662
WHCP 3603 6662 360 mm - 400 mm, 770 kg - 1065 kg
Technical data
| Diameter | 360 mm |
| Wheel width | 60 mm |
| Hub length | 78 mm |
| Wheel axle diameter | 30 mm |
| Load capacity | 770 kg |
| Weight | 12 kg |
Wheel
- Cast iron wheel with pressed-on full-elastic rubber tyre
- (Shore A 68) with two deep groove ball bearings

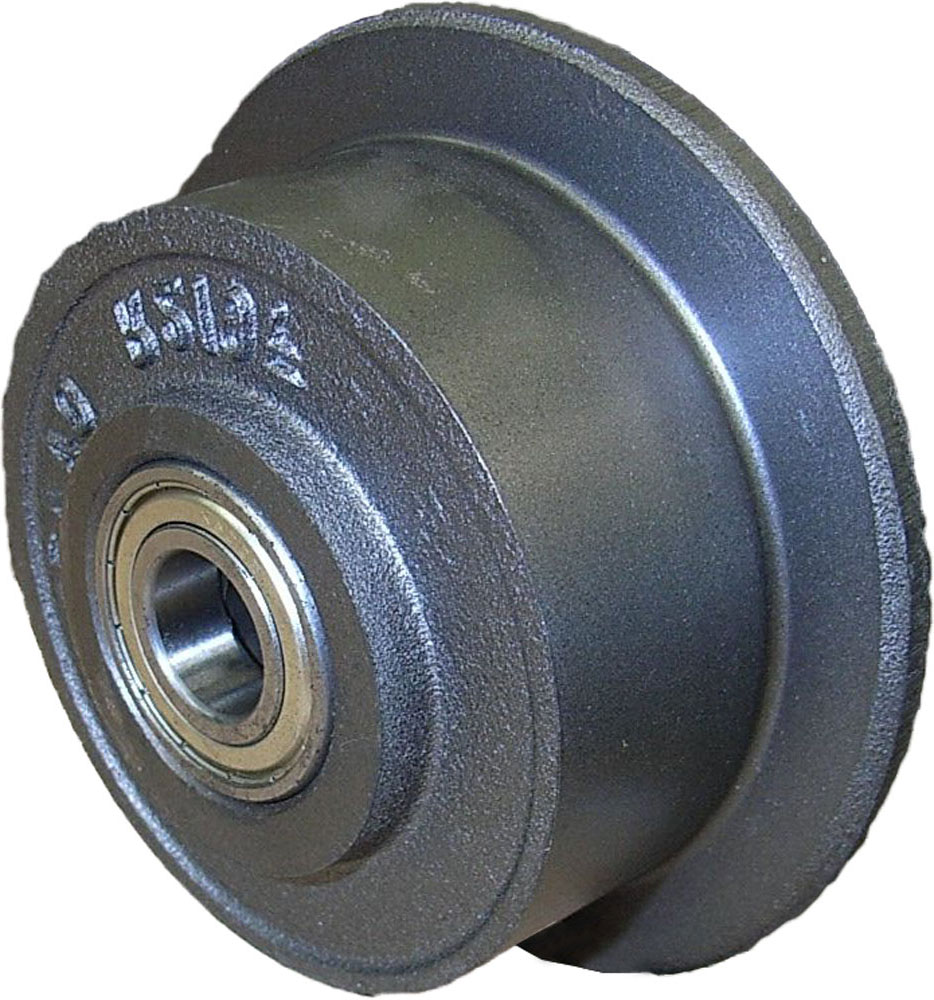

WHCS 1003 6440
WHCS 1003 6440 100 mm - 125 mm, 800 kg - 900 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 36 mm |
| Hub length | 52 mm |
| Wheel axle diameter | 20 mm |
| Load capacity | 800 kg |
| Weight | 2.5 kg |
Wheel
- Single flanged wheel of chromium cast iron GG 25,
- with two deep groove ball bearings

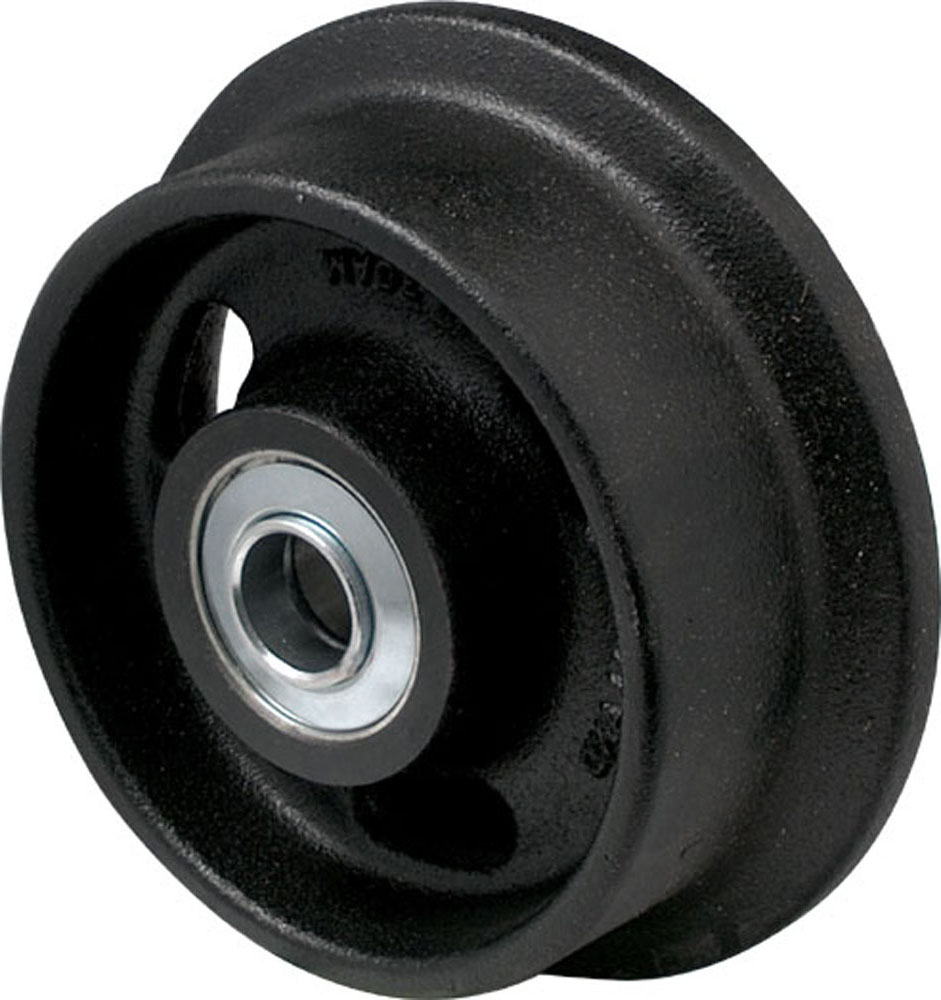

WHCS 1503 6552
WHCS 1503 6552 150 mm, 1000 kg
Technical data
| Diameter | 150 mm |
| Wheel width | 45 mm |
| Hub length | 64 mm |
| Wheel axle diameter | 25 mm |
| Load capacity | 1000 kg |
| Weight | 4.4 kg |
Wheel
- Single flanged wheel of chromium cast iron GG 25,
- with two deep groove ball bearings

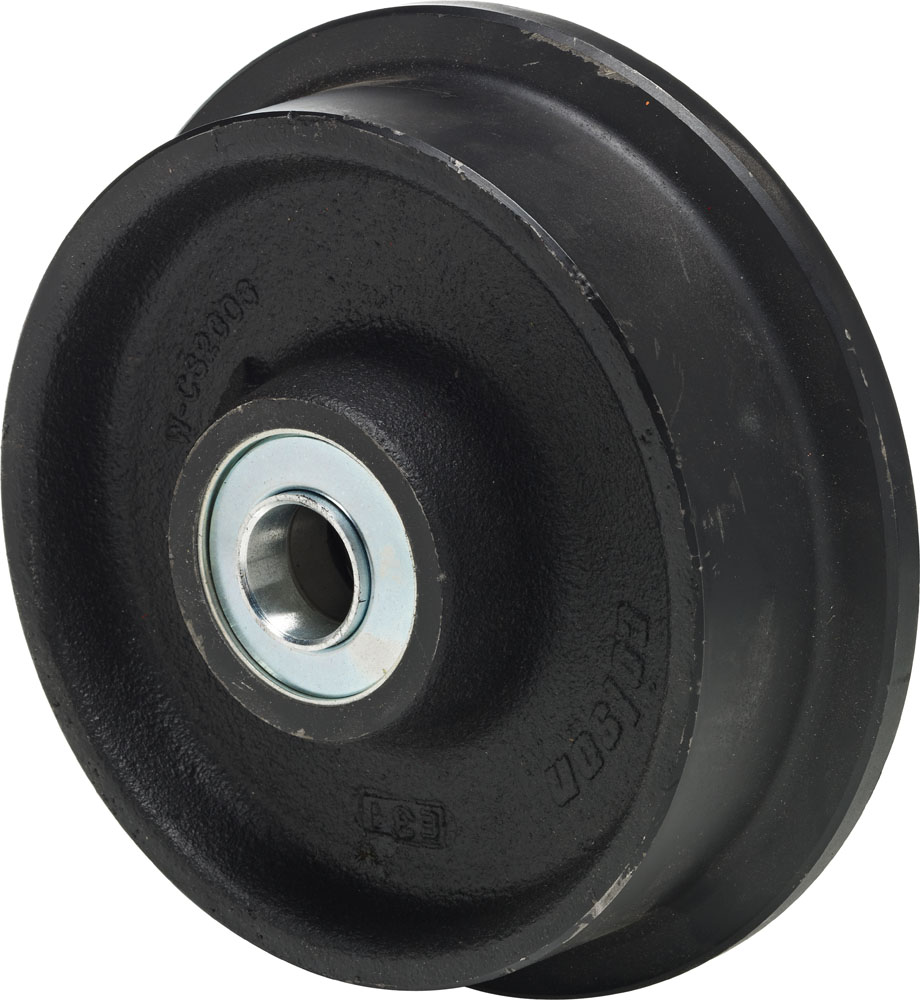

WHCS 2003 6662
WHCS 2003 6662 200 mm - 250 mm, 1200 kg - 1500 kg
Technical data
| Diameter | 200 mm |
| Wheel width | 45 mm |
| Hub length | 78 mm |
| Wheel axle diameter | 30 mm |
| Load capacity | 1200 kg |
| Weight | 7.3 kg |
Wheel
- Single flanged wheel of chromium cast iron GG 25,
- with two deep groove ball bearings

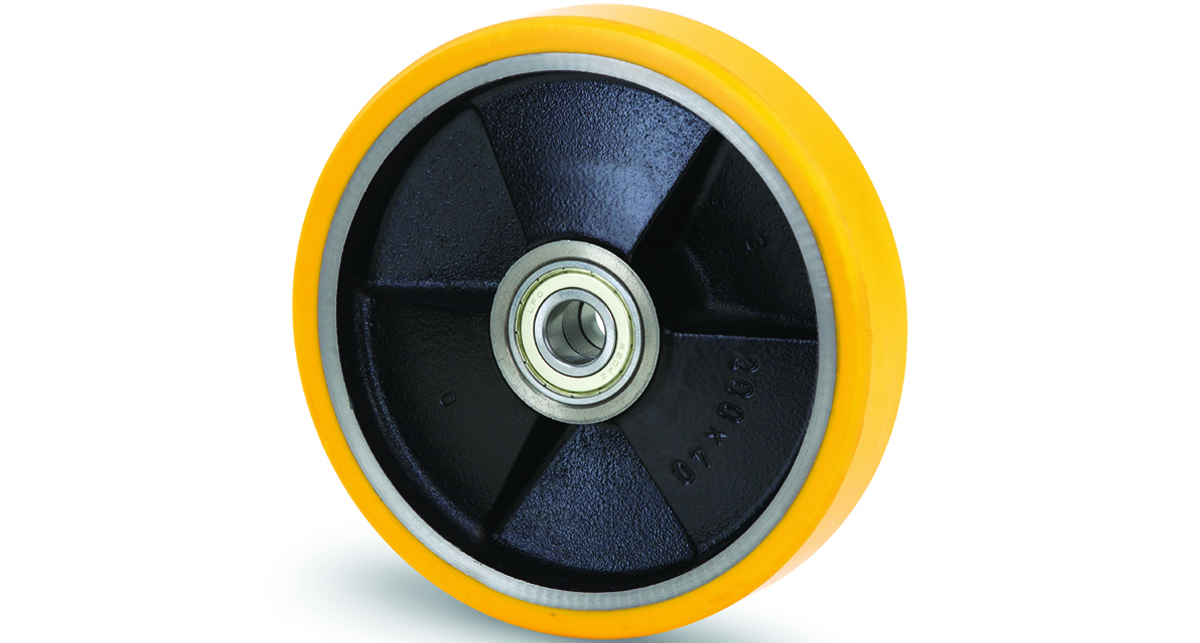

WHCU 0802 62012
80 mm - 500 mm, 250 kg - 4500 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 20 mm |
| Hub length | 10 mm |
| Wheel axle diameter | 12 mm |
| Load capacity | 250 kg |
Wheel
- Cast iron wheel with bonded-on polyurethane tyre (Shore A 92) with two taper roller bearings
WHCV 0803 6151
WHCV 0803 6151 80 mm - 100 mm, 210 kg - 350 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 30 mm |
| Hub length | 45 mm |
| Wheel axle diameter | 15 mm |
| Load capacity | 210 kg |
| Weight | 0.6 kg |
Wheel
- Cast iron wheel with bonded-on Vulkollan tyre (Shore A 92) with two ball bearings
WHCV 1253 6443
WHCV 1253 6443 125 mm - 250 mm, 500 kg - 1100 kg
Technical data
| Diameter | 125 mm |
| Wheel width | 50 mm |
| Hub length | 64 mm |
| Wheel axle diameter | 20 mm |
| Load capacity | 500 kg |
| Weight | 1.7 kg |
Wheel
- Cast iron wheel with bonded-on Vulkollan tyre (Shore A 92) with two ball bearings
WHCV 1253 6553
WHCV 1253 6553 125 mm - 250 mm, 500 kg - 1100 kg
Technical data
| Diameter | 125 mm |
| Wheel width | 50 mm |
| Hub length | 64 mm |
| Wheel axle diameter | 25 mm |
| Load capacity | 500 kg |
| Weight | 1.7 kg |
Wheel
- Cast iron wheel with bonded-on Vulkollan tyre (Shore A 92) with two ball bearings
WHCV 1253 6553/N=60
WHCV 1253 6553/N=60 125 mm - 250 mm, 500 kg - 1100 kg
Technical data
| Diameter | 125 mm |
| Wheel width | 50 mm |
| Hub length | 60 mm |
| Wheel axle diameter | 25 mm |
| Load capacity | 500 kg |
| Weight | 1.7 kg |
Wheel
- Cast iron wheel with bonded-on Vulkollan tyre (Shore A 92) with two ball bearings
