Transport Appliance Castors

The global world of networking is shaping new demands on logistics and the transport business. Mobility is being understood in a new way. Not only across national borders, but in the internal flow of goods. Castors from RHOMBUS are solid and reliable components within this agile cycle. They move trolleys, workbenches, switch cabinets, cleaning equipment and other mobile facilities – and have just one goal in the process: to guarantee quality – forever.

DFNY08011030
DFNY08011030

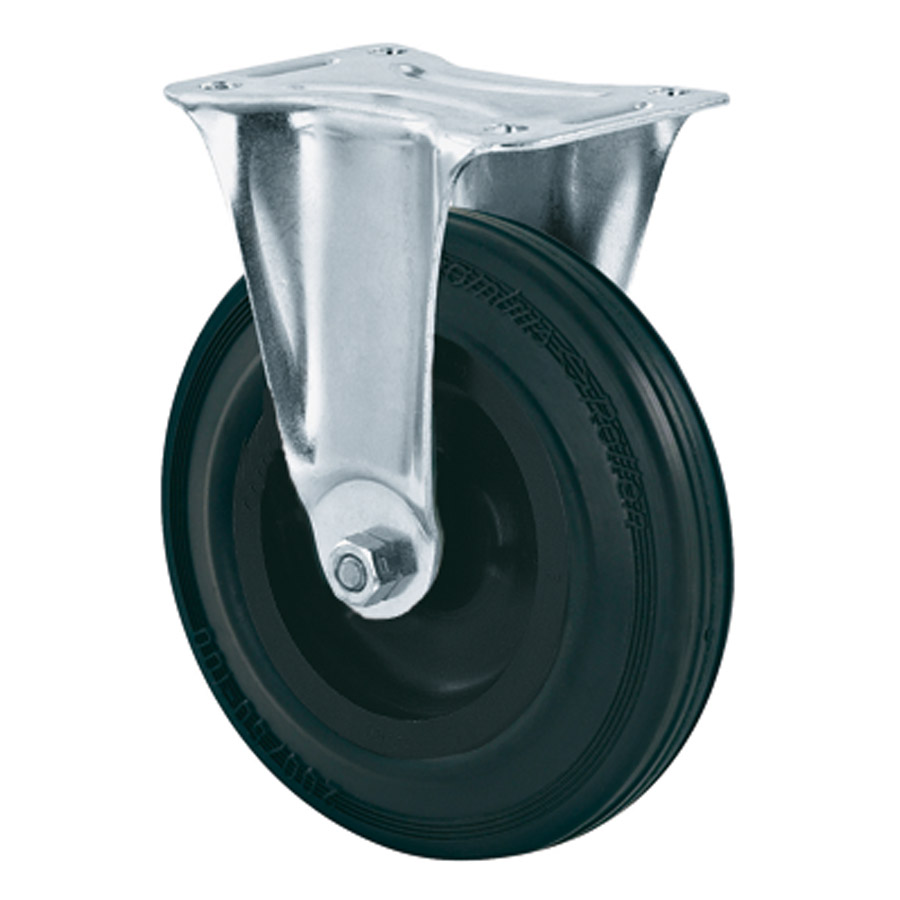

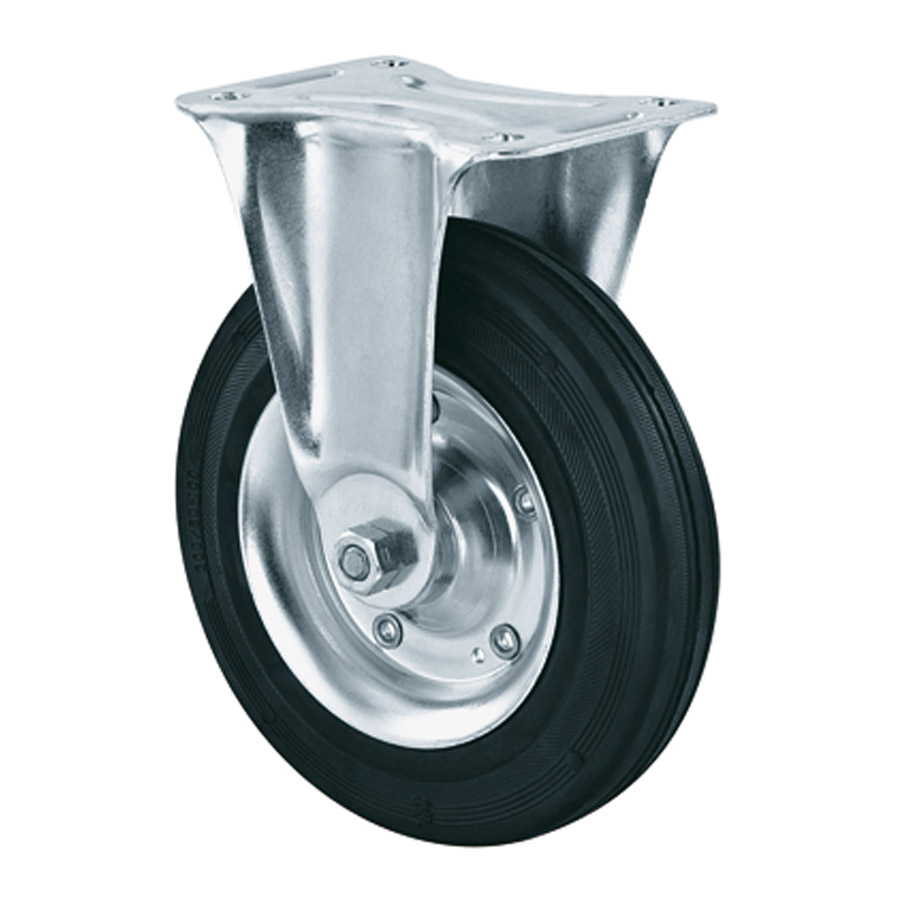

Pressed Steel Fixed Castor 80 mm, 130 kg

Technical data

Diameter 80 mm
Height 108 mm
Top plate dimensions 105 x 85 mm
Dist. between holes 80/77 x 60 mm
Bolt hole diameter 9 mm
Load capacity 130 kg
DFNY10011030
DFNY10011030


Pressed Steel Fixed Castor 100 mm, 190 kg

Technical data

Diameter 100 mm
Height 128 mm
Top plate dimensions 105 x 85 mm
Dist. between holes 80/77 x 60 mm
Bolt hole diameter 9 mm
Load capacity 190 kg
DFNY12511030
DFNY12511030


Pressed Steel Fixed Castor 125 mm, 200 kg

Technical data

Diameter 125 mm
Height 155 mm
Top plate dimensions 105 x 85 mm
Dist. between holes 80/77 x 60 mm
Bolt hole diameter 9 mm
Load capacity 200 kg
DFNY16011040
DFNY16011040


Pressed Steel Fixed Castor 160 mm, 250 kg

Technical data

Diameter 160 mm
Height 200 mm
Top plate dimensions 137 x 105 mm
Dist. between holes 105 x 80/75 mm
Bolt hole diameter 11 mm
Load capacity 250 kg
DFPN08011030
DFPN08011030


Pressed Steel Fixed Castor 80 mm, 100 kg

Technical data

Diameter 80 mm
Height 108 mm
Top plate dimensions 105 x 85 mm
Dist. between holes 80/77 x 60 mm
Bolt hole diameter 9 mm
Load capacity 100 kg
DFPN10011030
DFPN10011030


Pressed Steel Fixed Castor 100 mm, 150 kg

Technical data

Diameter 100 mm
Height 128 mm
Top plate dimensions 105 x 85 mm
Dist. between holes 80/77 x 60 mm
Bolt hole diameter 9 mm
Load capacity 150 kg
DFPN12511030
DFPN12511030


Pressed Steel Fixed Castor 125 mm, 180 kg

Technical data

Diameter 125 mm
Height 155 mm
Top plate dimensions 105 x 85 mm
Dist. between holes 80/77 x 60 mm
Bolt hole diameter 9 mm
Load capacity 180 kg
DFPN16011040
DFPN16011040


Pressed Steel Fixed Castor 160 mm, 250 kg

Technical data

Diameter 160 mm
Height 200 mm
Top plate dimensions 137 x 105 mm
Dist. between holes 105 x 80/75 mm
Bolt hole diameter 11 mm
Load capacity 250 kg
DFRN08011030
DFRN08011030


Pressed Steel Fixed Castor 80 mm, 130 kg

Technical data

Diameter 80 mm
Height 108 mm
Top plate dimensions 105 x 85 mm
Dist. between holes 80/77 x 60 mm
Bolt hole diameter 9 mm
Load capacity 130 kg
DFRN10011030
DFRN10011030


Pressed Steel Fixed Castor 100 mm, 150 kg

Technical data

Diameter 100 mm
Height 128 mm
Top plate dimensions 105 x 85 mm
Dist. between holes 80/77 x 60 mm
Bolt hole diameter 9 mm
Load capacity 150 kg
